Tenders Description & Specification for Motor Control and Electrical Drive Workbench

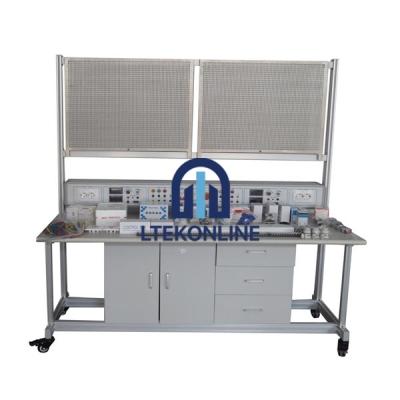

Motor Control and Electrical Drive Workbench
This training workbench include various motor application circuit, through experiment, students will be familiar with motor features, mater control principle and control method. It stress on hand on operation ability, and training practice.
Character:
Training workbench has high safety system.
Equipped with motors, students can make combination, and finish many training contents.
Training workbench use aluminum column structure frame, it include meter box and power box to test and measure technical parameter, it is easy to use and it is not easy to be broken.
Technical parameter:
Whole capacity:<2.0KVA
Input power: three, five wires,380V±10% 50Hz
Work condition:
Environment temperature:-10ºC~+40ºC
Relative humidity: <85%(25ºC)
Dimension: 1600mm×800mm×1750mm
Weight: <300kg
Product consist of:
Power control panel:
Power control panel use aluminum structure metal panel, all close type boxes structure
Training workbench:
The workbench panel thick is 25mm high density substrate , there is high temperature high pressure anti-fire treatment process. Training workbench use aluminum structure. There are universal 4 wheels at the bottom of workbench, there are 2 breakers on wheel. The trainer can be moved or stop convenient. It equip with three guide rail type drawer, 2 push and plug cabinet. The structure is sound and reliable, outlook is beautiful.
Power control panel:
Single phase, three wire power input, it has been tested by leakage breaker control, it has emergency stop button, you can cut off electricity when emergency.
DC 0-220V continuous adjustable DC armature power, AC220V,AC380V, with short circuit protection function.
Control panel has two point type voltage meter, one current meter, one power meter, one non power meter.
It equipped with indicator, Europe power plug output, safety output sockets.
