Trainer using aluminum column frame and workbench structure, measuring instrument and practical power built-in integration installation, practical circuit and device adopts hanging box combinations, each unit with flexible, easy to use, not easy to damage.
Experimental circuit and device configuration is complete, can be combined, to complete a variety of subjects of training content.
Trainer has a good safety protection system. Allows operation, students independent experiment to cultivate students' ability to analyze and solve problems.
Capacitance
Input power: 230 v + 10% for 50 hz, single-phase three-wire system
Dimension: 1780mm×700mm×1300mm
Capacity: < 1.5 kva
Weight : < 290 kg
working conditions: temperature - 10 ℃ ~ + 40 ℃ relative humidity < 85% (25 ℃)
Product consist of
Power control panel
Power control panel use aluminum structure metal panel, all close type boxes structure

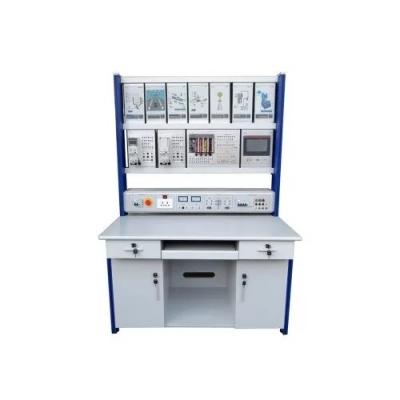

Training workbench
Training workbench use aluminum structure. There are universal 4 wheels at the bottom of workbench, there are 2 breakers on wheel. The trainer can be moved or stop convenient .
The workbench panel thick is 25mm high density substrate , there is high temperature high pressure anti-fire treatment process. It equip with three guide rail type drawer, 2 push and plug cabinet. The structure is sound and reliable, outlook is beautiful.
Power control panel
Single phase, three wire power input, it has been tested by leakage breaker control, it has emergency stop button, you can cut off electricity when emergency.
voltmeter and amperemeter act as output indicator, equip with 0-10V, 4-20mA forcing function generator.
It equipped with indicator, Europe power plug output, safety output sockets.
Inner AC power supply, with short circuit protection function.

Ltekonline are the manufacturers of PLC Trainer Inverter Training Workbench used to demonstrate engineering principles in Engineering Colleges, Engineering Schools and PLC Trainer Kits for Engineering Teaching Lab in Universities
