Tenders Description & Specification for Temperature measurement Heat Transfer Experiment Equipment

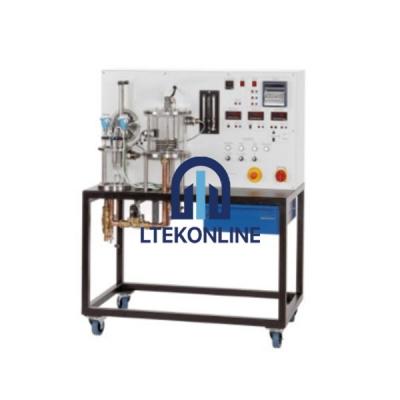

Temperature measurement Heat Transfer Experiment Equipment
The trainer can be used to carry out and compare different temperature measurement procedures. The trainer includes liquid thermometers, bimetal thermometers, as well as a thermocouple, a Pt100 resistance thermometer and an NTC thermistor, each with different protective sleeves, for electronic temperature measurement. A psychrometer with two liquid thermometers is used to measure the relative air humidity.
Different physical processes are used to measure temperatures. Temperatures can be read off directly on a scale, e.g. by the expansion of a measuring medium.
In industry, temperatures are often measured electronically. The advantage of electronic measurement is that further processing or transmission of signals to remote locations (controllers, external displays) is easier.
The heated water at a specified temperature is fed into the experimental tank. By lowering the height-adjustable device, the temperature sensors are immersed in the water and the temperature measurement begins.
To compare the different measuring methods, the temperature sensors being studied are attached to a height-adjustable device above the experimental tank. A fan ensures almost constant ambient conditions. A second tank with electronically controlled heater supplies water temperatures up to approx. 80°C.
The measured values can be read as analogue or digital values. A 3-channel line recorder can record the measured values of the electronic temperature sensors continuously over time and thus also document the different time response. Defined temperature jumps and steady and transient temperature behaviour can be studied.
Specification:
Experimental tank and heating tank with temperature control, water-filled
Both tanks equipped with stirring machine
Fan generates constant air temperature above the experimental tank
Steady and transient temperature measurement with typical measurement instruments
Temperature sensors: liquid thermometer, bimetal thermometer, Pt100, thermistor (NTC), type K thermocouple
Psychrometer for determining the relative air humidity
Defined temperature jumps up to 80°C
3-channel line recorder for recording the measured values.
Technical data:
Heater
output: 2kW at 230V, 1,5kW at 120V
Tank capacity: 4L
Temperature controller
Psychrometer
Thermocouple type K
Thermistor (NTC)
PID
Line recorder
3 channels
Serial interface
Temperature sensors
Liquid thermometer with organic liquid
Bimetal thermometer
Pt100
Measuring ranges
temperature: 0…100°C
Rel. humidity: 3…96%
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase; 120V, 60Hz, 1 phase
Dimensions and weight
LxWxH: 1200x700x1550mm
Weight: approx. 185kg.
Ltekonline are the manufacturers of Temperature measurement Heat Transfer Experiment Equipment used to demonstrate engineering principles in Engineering Colleges, Engineering Schools and Thermal Training Equipment for Engineering Teaching Lab in Universities
