Tenders Description & Specification for Vertical CNC Milling Machine

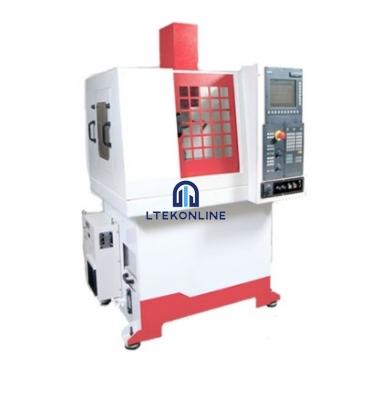

Vertical CNC Milling Machine
Fully enclosed
LED work light
Three-nozzle flood coolant ring
Consolidated Air/Lube Mainfold (CALM) update
Wash gun on front of machine
High-impact safety glass window
Inline coolant filter
Redesigned coolant tank
High-capacity 40 gal (151 L) vs. 24 gal (90 L)
Accomodates the Haas Oil Skimmer, Larger cleanout access, Improved chip-flow system, Coolant pump.
| Table size(mm) | 550×200 | |
| T type groove (Number-width(mm)-gap(mm)) | 3-12 | |
| The workbench maximum load(kg) | 150 | |
| Travel of X axis (mm) | 300 | |
| Travel of Y axis(mm) | 180 | |
| Travel of Z axis(mm) | 280 | |
| The spindle nose to the work surface(mm) | 90-370 | |
| The center of spindle to guide rail face(mm) | 240 | |
| Taper hole of spindle | BT30 | |
| Highest speed of spindle(Rpm) | 12000 | |
| Power (kW) | 3 | |
| Rapid feed rate of X/Y/Z (m/min.) | 15/15/15m/min | |
| Fast cutting speed(mm/min) | 1-4000 | |
| Width of Wire rails X/Y/Z(mm) | 20 | |
| Accuracy | positional accuracy (mm) | 0.01 |
| repeated positioning accuracy (mm) |
0.075 | |
| Weight(kg) | 700 | |
| Dimension(mm) | 1220*1060*1850 | |
Ltekonline are the manufacturers of Vertical CNC Milling Machine used to demonstrate engineering principles in Engineering Colleges, Engineering Schools and Workshop Machines for Engineering Teaching Lab in Universities
Categories: Workshop Machines
