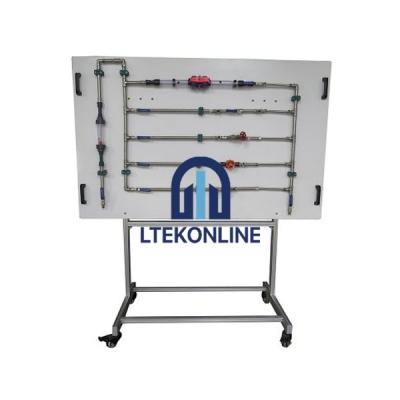

Pipe Friction Training Panel
Pipe Friction Training Panel
Product Code: LTEKCTLB-TTE60-00130

Tenders Description & Specification for Pipe Friction Training Panel

Pipe Friction Training Panel

Specification:
Transparent tank with overflow ensures constant water inlet pressure in the pipe section for experiments with laminar flow
Water supply via Base Module (Hydraulic Bench) or via laboratory supply for experiments with turbulent flow
Investigation of the pipe friction in laminar or turbulent flow on Hydraulic Bench
Flow rate adjustment via valves
Flow rate determined by base module Hydraulic Bench
Water supply using base module (Hydraulic Bench) or via laboratory supply
Twin tube manometer for measurements in laminar flow
Dial-gauge manometer for measurements in turbulent flow
Diameter of test pipe : 3.0mm (Bore)
Length of test pipe : 524mm
Needle Valve included to regulate flow rate
Length: 1000mm – Pipe section 1: acrylic 20×1.5mm – Pipe section 2: steel 1/2″ –
Smooth-bore pipes of various diameters Size – 6mm , 10mm, 17mm
Overall dimensions:
Height : 1.05m form the ground level
Width : 2.25m
Depth : 0.43m
Test Pipe Diameters:
The Pipe network should have 90° Bends, 90° elbow,90°T, 45°elbow & Y.
Sudden enlargement
Sudden contraction
Venturi made of clear acrylic
Orifice plate made of clear acrylic
Ball Valve
Gate Valve
Globe valve
Inline strainer
Pitot Static tube section made of clear acrylic.

EXPERIMENTAL CAPABILITIES
Flow measurement using venturi meter
Flow measurement using orifice plate
Laminar to turbulent flow regimes in pipes
Energy losses in pipe fittings and bends
Use of pitot static tube
Use of manometers.
