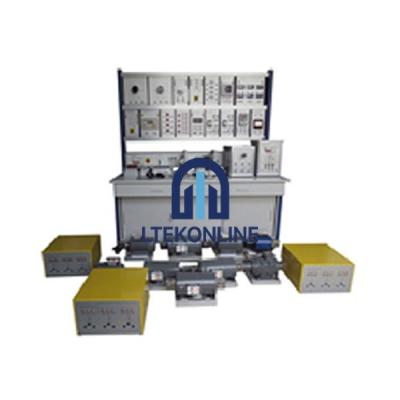

This training units including the typical application of three-phase salient pole generator circuit unit, through the relevant experiment, can be familiar with electrical properties of three-phase salient pole generator control, to master its control principle and control mode, the corresponding knowledge and skills.

Features:

Motor is equipped with a special base, can be directly connected to the dc motor mechanical load of generator set, visual monitoring of wiring and operation, complete a variety of subjects of training content.

Set up for experimental subjects flexible increase or decrease in the related units, in order to satisfy the demands of different users.

Training adopts aluminum column frame type structure, the power supply is built-in integration installation, safe and convenient to use, not easy to damage.

Training workbench with good safety protection system, to protect students well..

Technical specifications:

Whole capacity<2.0KVA

Input power: three phases, five wires, 380V±10% 50Hz

Work condition

Work environment:-10ºC~+40ºC

Relative humidity <85%(25ºC)

Dimension:1600mm×800mm×1300mm

Weight<100kg.
